Professional PE Paint Two-Component Spray Gun
Professional PE Paint Two-Component Spray Gun
- SGH-S2-PE
- 240
- 1Pcs
- Cash on delivery
- 1-7 days
- Patent CN203565238U
PRODUCT FEATURES
ln the coating of PE paint, we are still in searching that some spray gun can save waster of PE paint and human.

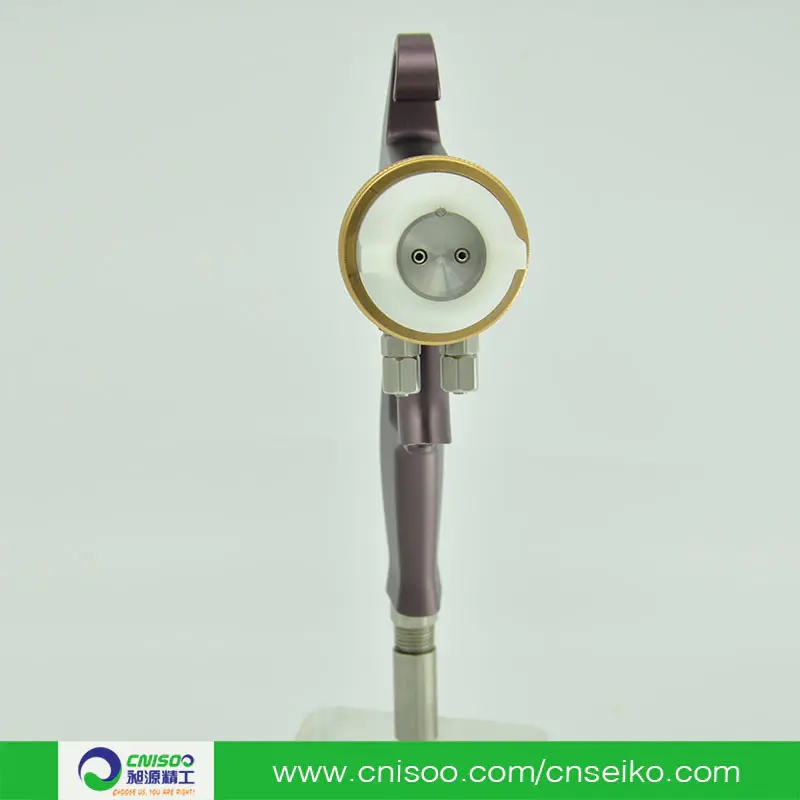

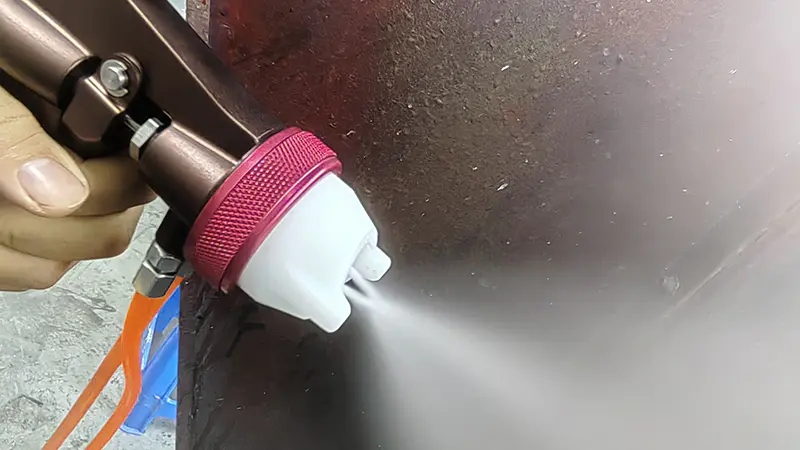

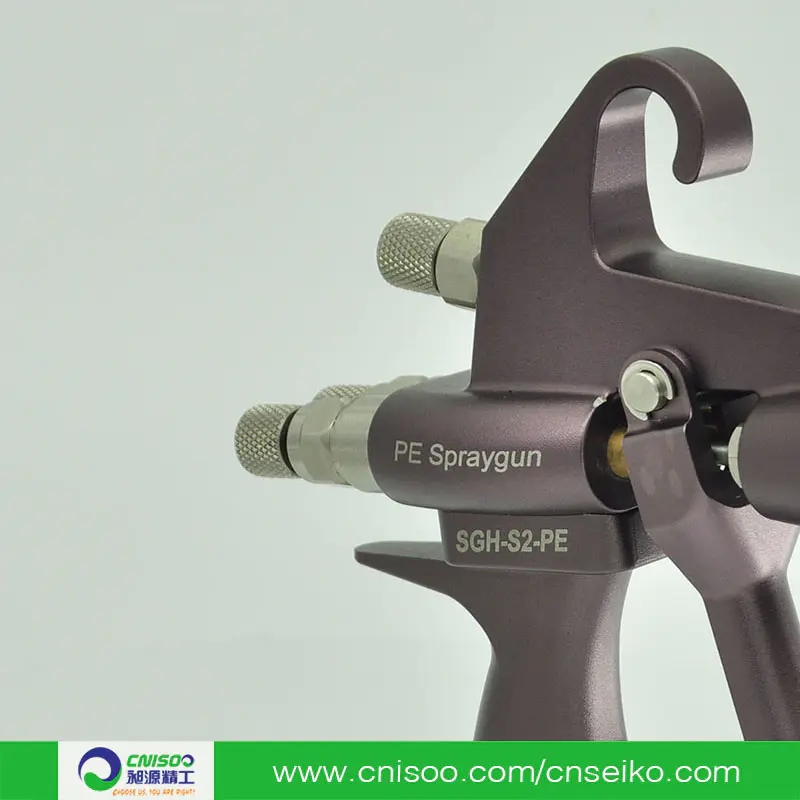

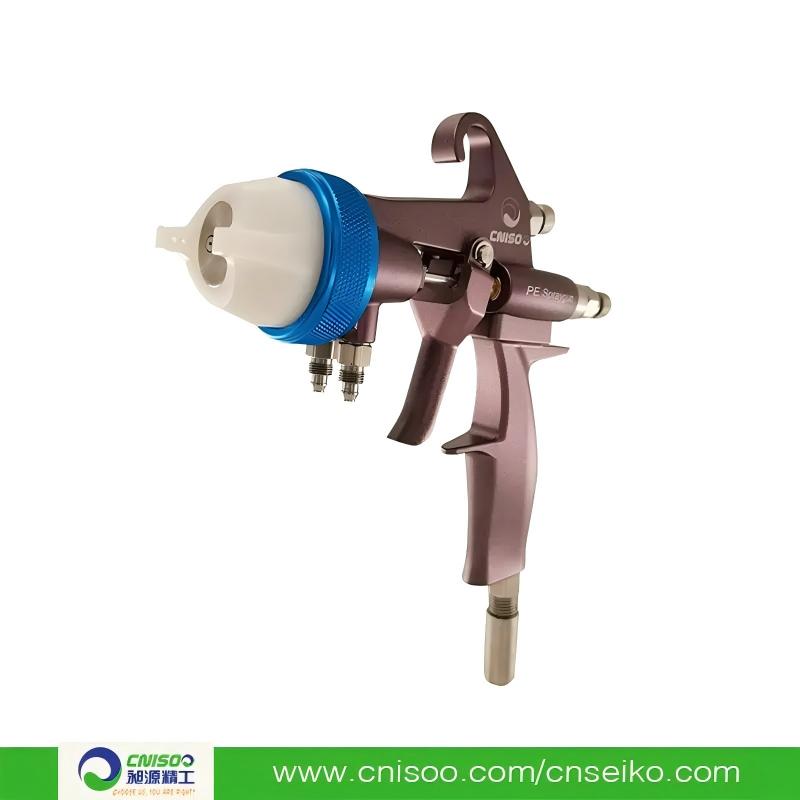

SGH-S2-PE paint spray gun, based on double head spray gun principle, and make two different paint or liquid mixed out of spray gun 's air cap and save raw material. Usually, this spray gun is used for PE paint spraying and corrosive liquid in chrome, is the best two-component spraying choice.
Choose SGH-S2-PE PE paint gun, you can improve your production efficiency, reduce the loss of raw materials to achieve lower costs, higher use of tools to create higher efficiency.
It has much better quality as manufactured by machine but not produced from mold.
Every gun body has the only code, itis helpful for tracking and after-sales service.
The nozzle, needle and liquid path are made of 316 stainless steel to anti-corrosion, it can spray both usual paintand different water based paint.
As the spray gun's leader, Cnisoo owns the right that modify and improve the gun but without informing for customer. What's more, Cnisoo has more than five patented for this gun.
All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.
Model | Type of Feed | Nozzle Diameter(mm) | Air Pressure(Mpa） | Air usage-l/Min | Liquid Output(ml/min) |
SGH-S2-PE-08P | Pressure Feed Type | 0.8 | 0.15～0.45 | 155 | 360 |
SGH-S2-PE-10P | 1.0 | 160 | 385 | ||
SGH-S2-PE-13P | 1.3 | 170 | 430 | ||
SGH-S2-PE-15P | 1.5 | 185 | 465 | ||
SGH-S2-PE-18P | 1.8 | 0.25～0.45 | 240 | 480 | |
SGH-S2-PE-20P | 2.0 | 265 | 490 | ||
SGH-S2-PE-25P | 2.5 | 0.30～0.45 | 320 | 520 | |
SGH-S2-PE-30P | 3.0 | 345 | 610 | ||
SGH-S2-PE-ZH | 0.5 +3.0 | 0.4～0.6 | 460 | — | |
Pattern Wid（mm) | Air Cap Model | Air Hose(mm) | Coating hose(mm) | Moss/G | Mounted device |
105 | 03p (Point of intersection30mm) | 5x8mm PU Hose | 4x6mm Parallel tube PTFF462 | 650 | For manual type, should be equipped with A series stainless steel pump |
Product application introduction

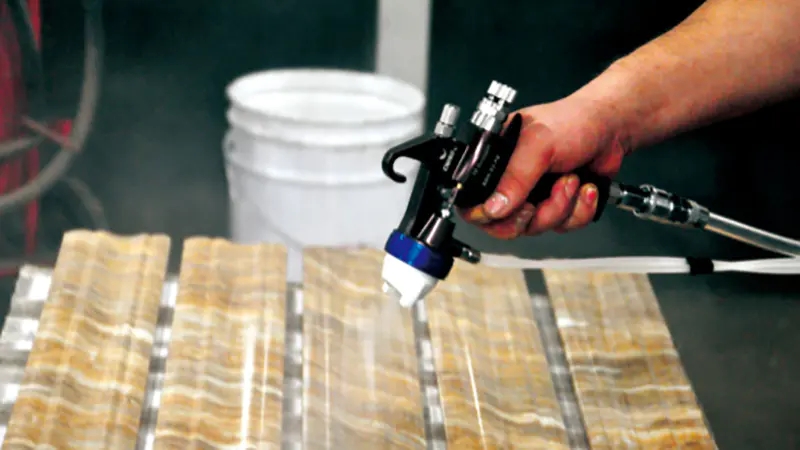

Spray guns are popular in the field of artificial spraying because of their lightness and excellent atomization. Is widely used in electronics, electrical appliances, furniture, wood products, hardware, aerospace, automotive, daily necessities and other household products, smart product shells, model toys and other surface treatment processes.
PRODUCT DETAILS

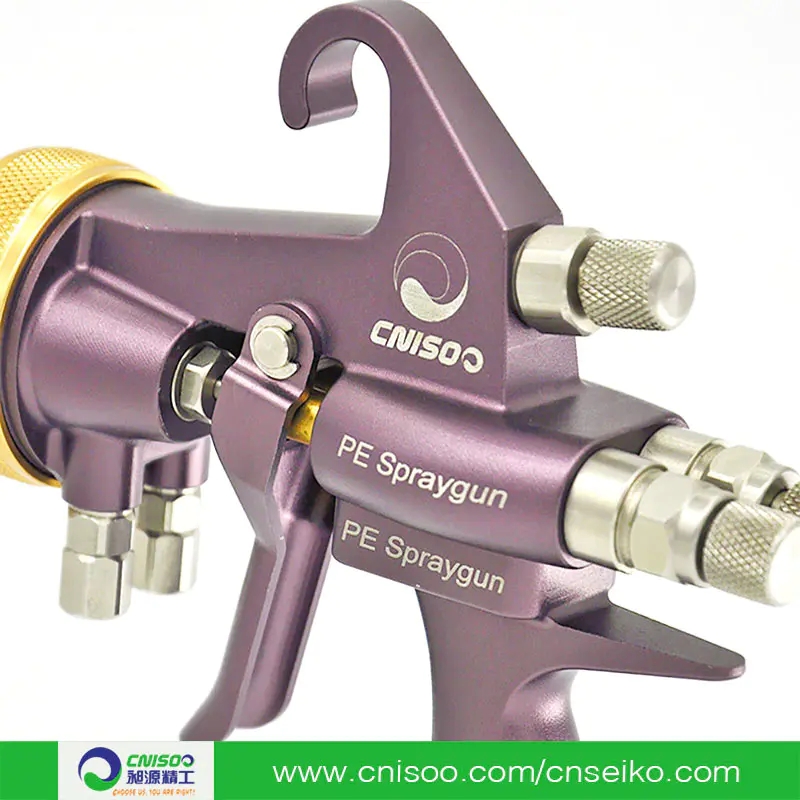

The spray gun produced by electroplating process breaks the oxidation phenomenon of the traditional spray gun in humid environment, and can resist corrosion and friction.
The spray gun nozzle is made of 304 stainless steel, which is resistant to corrosion and abrasion. At the same time, it is equipped with a compound needle with a patent number of CN107081232A to adapt to special performance coatings. Such as: ceramic coatings with high abrasion performance, PTFE coatings, water-based coatings with high solid content, special coatings containing sand and so on.

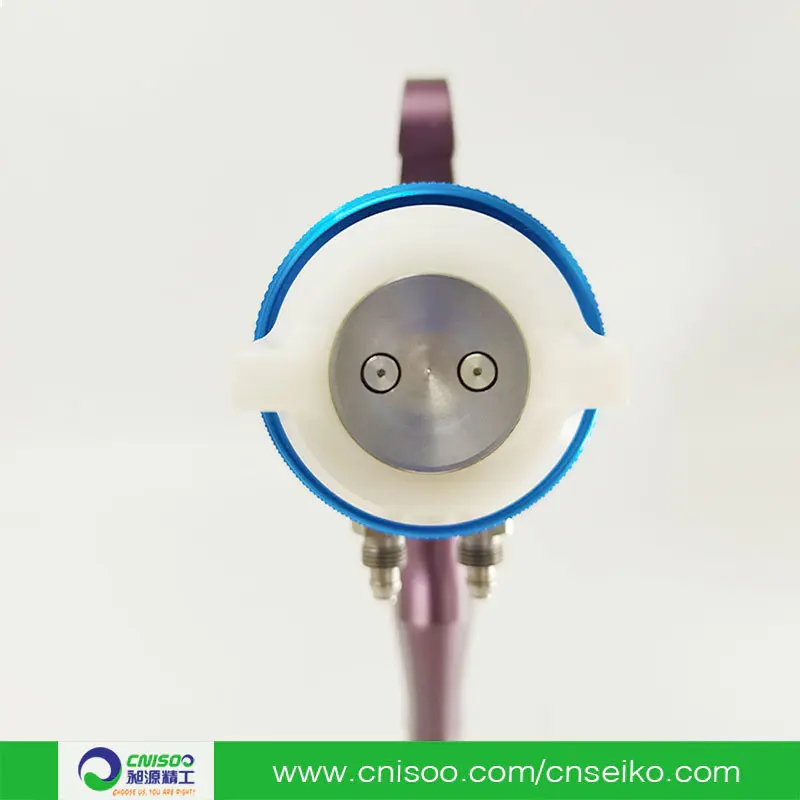

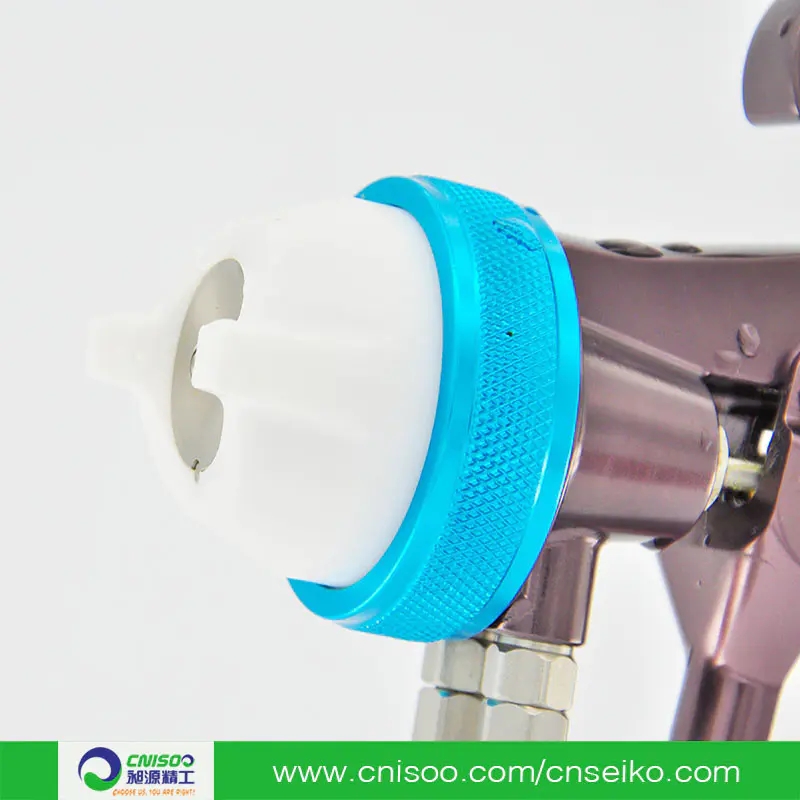

The air cap is made of environmentally friendly copper alloy after five-axis CNC machining. Each atomizing cap has undergone professional testing and test spraying to prevent poor atomization during spraying, thereby reducing the defective rate caused by spray gun spraying in production.
The nozzle diameter also refers to the effective diameter through which the coating particles can pass. The data in the table in the front column is the code. The parameter code needs to be filled in when ordering.
The parameter reading in the atomization pressure needs to be read in conjunction with a professional spraying air pressure gauge. The parameters in the lower column are Mpa megapascal units, 1 MP ≈0.98Bar.
The front model is the model code of the universal circulation spray gun, and the model in the back column is our company's order model code.
The minimum particle diameter is measured by laser diffraction. Depending on the viscosity, there will be substantial differences. Do not use it as a basis for production. It is only used to distinguish the effect that the spray gun can achieve under specific conditions.
Surface coating effect such as helmet and so on. Surface touch effect such as piano, guitar and other instruments.
PE paint coating for wood work object in furniture industry. Chrome spraying.(For example: car and son on.)
