Coating Automatic Spray Gun Paint Sprayer For Interior Walls

Model:: AU-IC

USD Unit Price:: Price depends on rod length

MOQ:: 1Pcs

Payment:: Cash on delivery

Delivery Time:: 1-7 days

Inquire Online
Download

Cancel

PRODUCT FEATURES

A spray gun used for the inner wall can deflection Angle, suitable for the general spray gun can not spray the scene, such as in the tube or long bucket. Spray gun and long pipe inner wall spray gun advantages:

■ The long tube spray gun is suitable for long-distance depth and high-spray spraying operations. The spray gun nozzle adopts special design ,the coating has strong adhesion and the spraying speed is fast.

■ The spray gun has a variety of different length design and special length design, so that you have a variety of options.

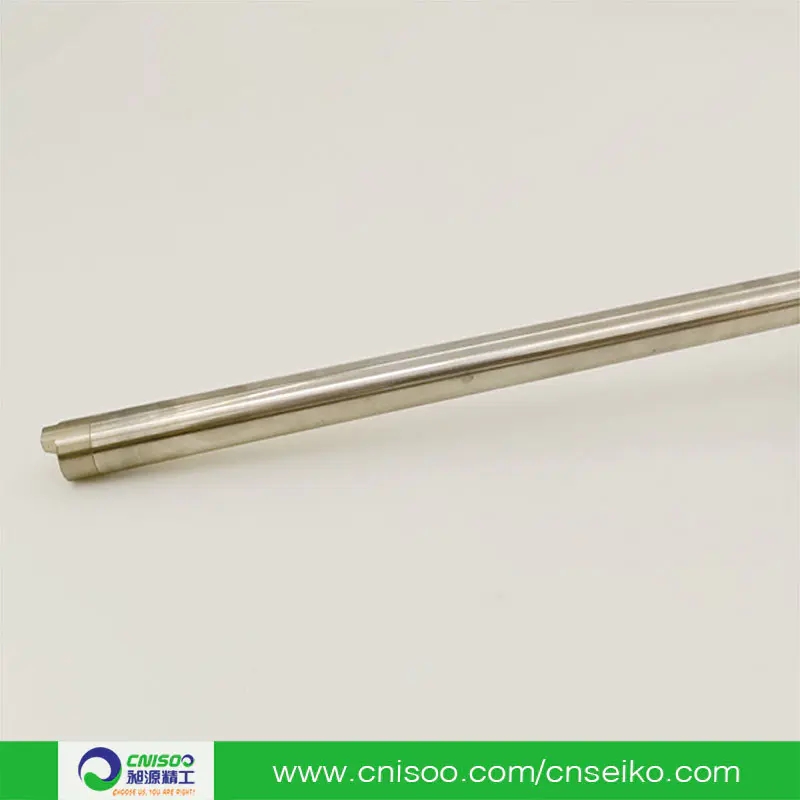

■ Spray gun connection pipe, coating pipe are stainless steel material, not bending deformation, wear resistance, corrosion resistance, spray atomization is more stable, long use cycle.

■ Mainly used for cosmetic bottles, perfume bottles, steel pipes, etc

PRODUCT PARAMETER

All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.

Model	AU-IC
Paint nozzle diameter (mm )	0.5/0.9/1.1/1.2
Rod length(mm)	60-300
Angle of deflection	60/90/120º
Maximum tube outer diameter(mm)	12mm

※ Spray deflection angle and spray gun extension rod length can be customized

Scope of application

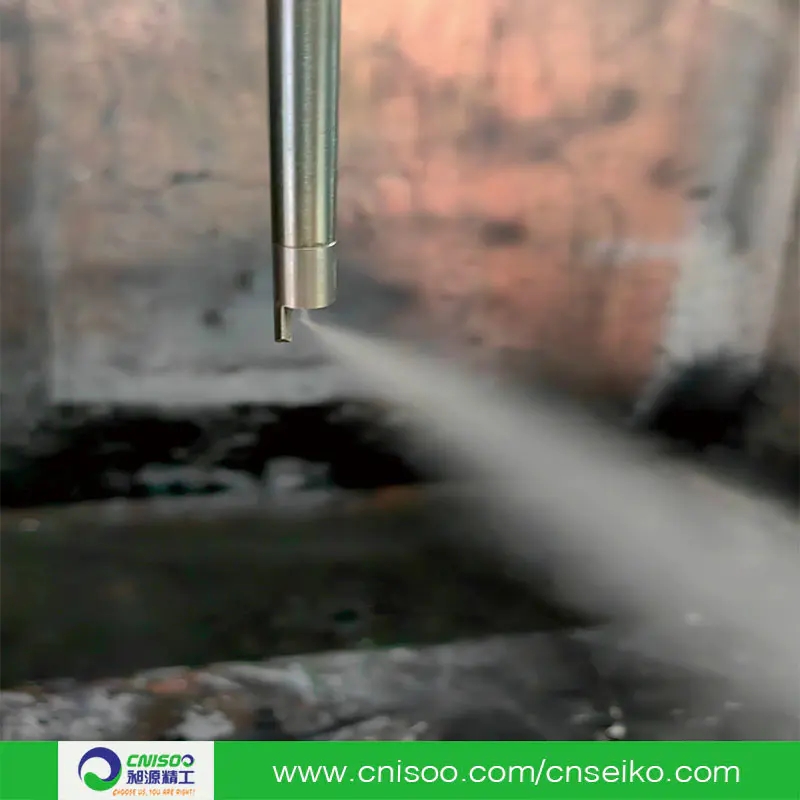

■ The long tube spray gun is suitable for the deep and high spraying of the inner wall of the pipeline and the distance. The spray gun nozzle is specially designed, which makes the coating adhesion rate strong and the spraying speed faster. There are a variety of different length designs and special length designs, so that you have more choices.

■ Mainly used for makeup bottles, perfume bottles, wine bottles, steel pipes and other deep inner wall spraying.

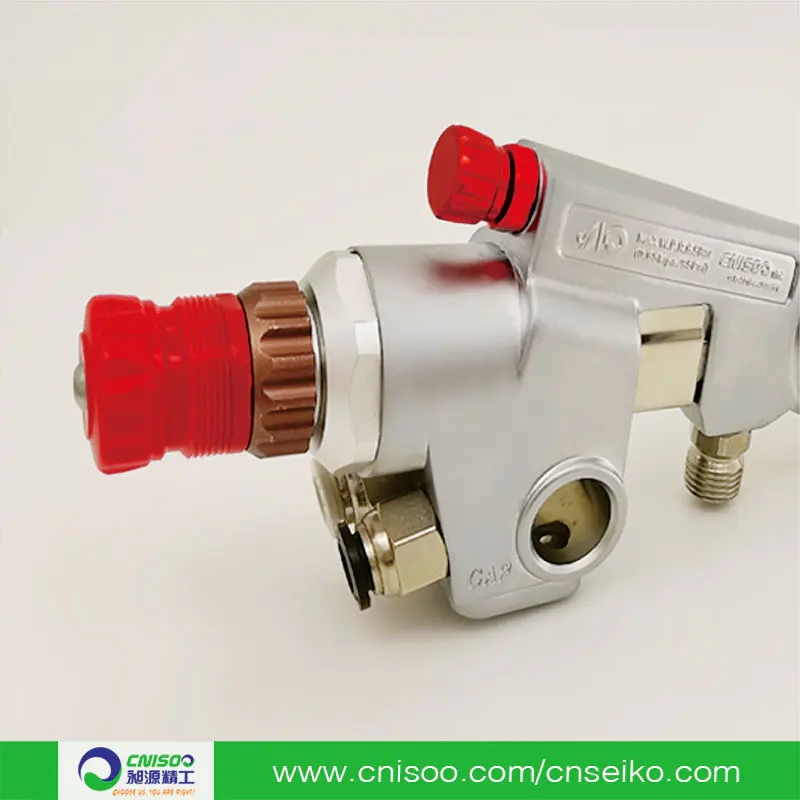

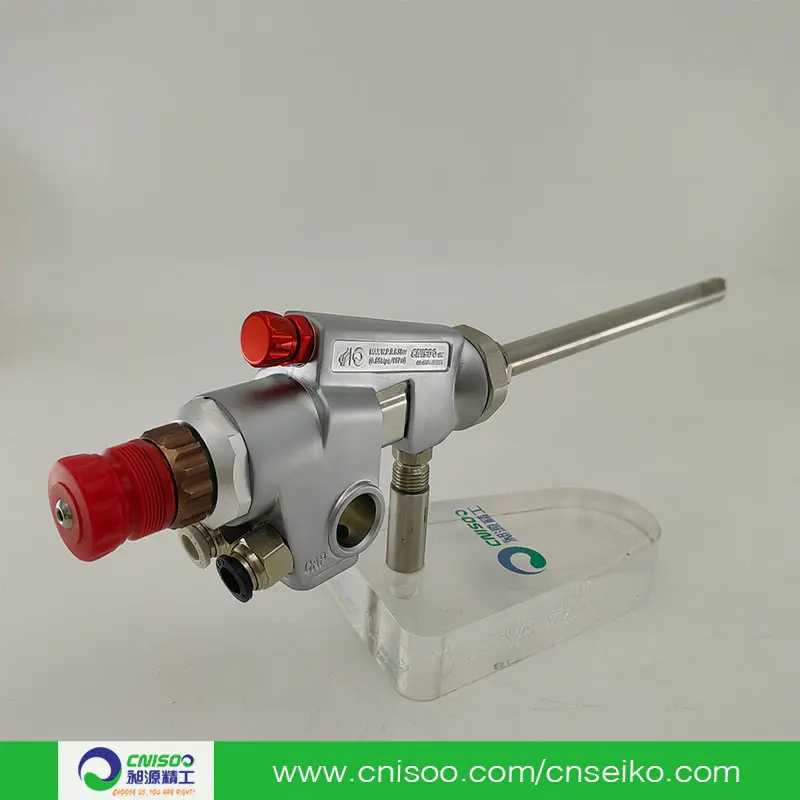

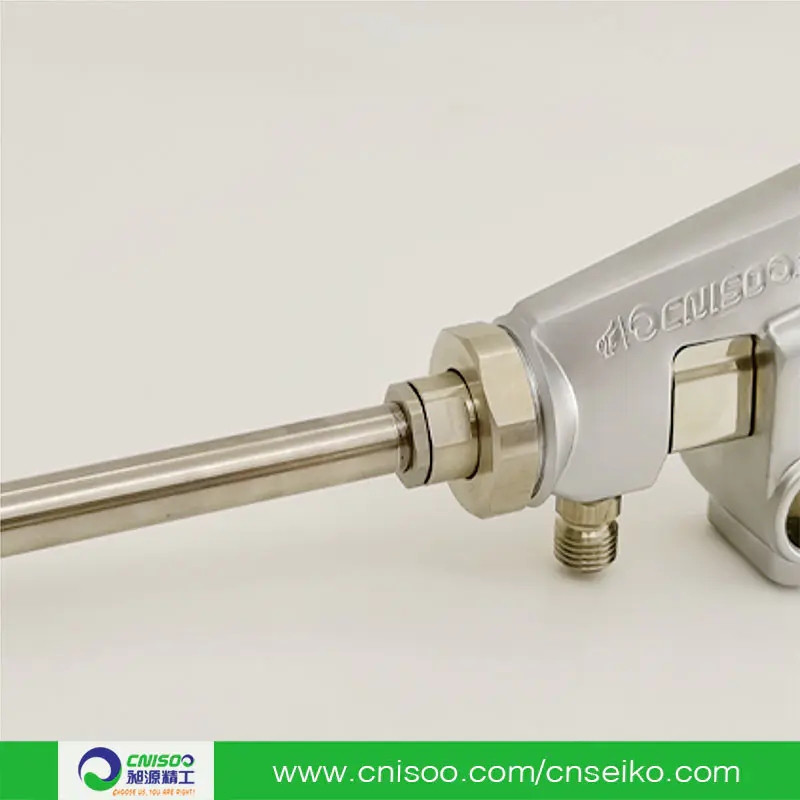

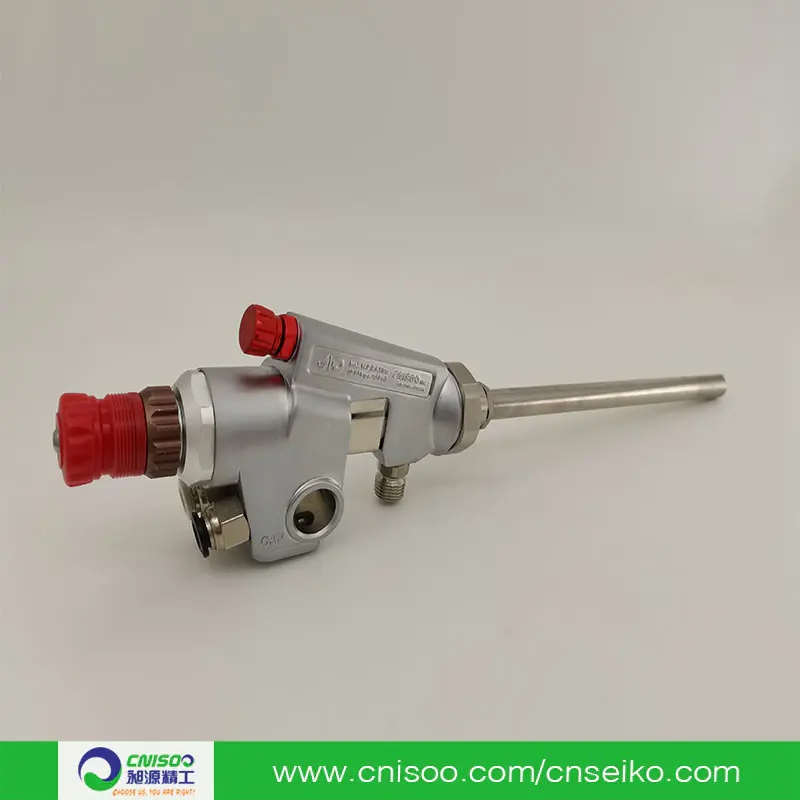

PRODUCT DETAILS

Because of its high cost performance, spray guns are widely used in automatic spraying machines such as automatic assembly lines, small spraying machines, automatic spraying machines, reciprocating spraying machines, robots, and robotic arms. With the intelligentization of equipment, manual operations have been replaced.
