Low Pressure Spray Gun, High capacity Internal Control Automatic paint guns

Instructions:: This automatic paint guns uses high volume, low pressure (HVLP) for high output with lower over-spray.

Model:: DD-1/DD-1S

USD Unit Price:: 220

MOQ:: 1Pcs

Payment:: Cash on delivery

Delivery Time:: 1-7 days

Certification:: patent CN107081232A

Inquire Online
Download

Cancel

PRODUCT FEATURES

Only need a solenoid valve to complete the control of high efficiency automatic external control gun,Simultaneous meeting the external control and interal tune.Independent spray width and atomization control valve.

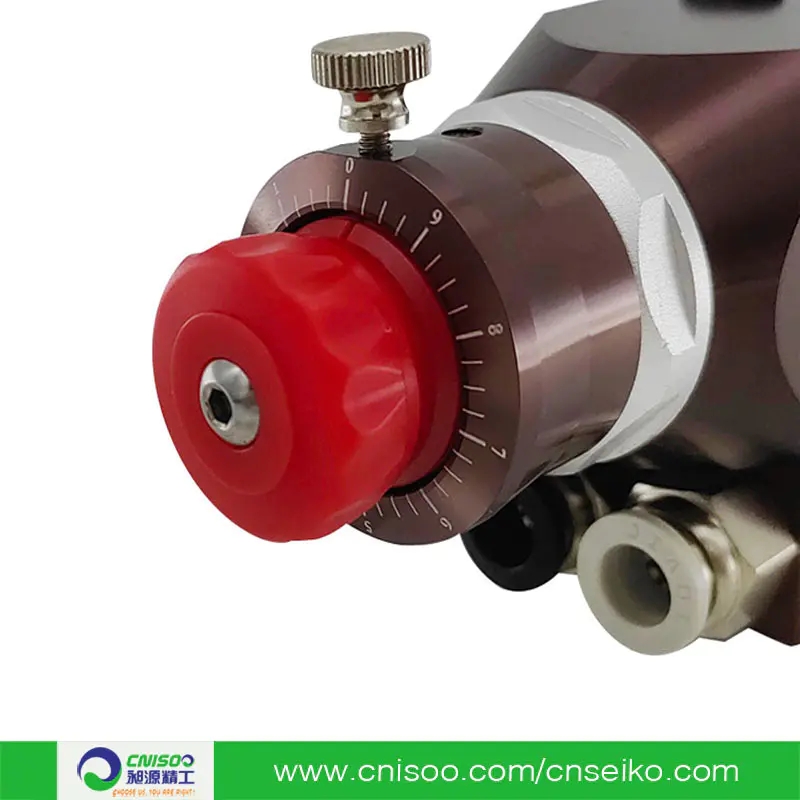

Tail with micrometer scale valve, precision adjustment,to ensure the accuracy of the amount of coating.

● VOC2 emission reduction of at least 35%

● High wear-resistant tungsten carbide needle mouth

● Ultimate fine atomization 35 microns

● Paint transfer efficiency is 65% or higher

● Atomization pressure 1.8Bar

● Provincial paint 15%

PRODUCT PARAMETER

All the data in the table are collected from CNISOO / CNSEIKO laboratory. The test fluid is tap water with PH = 7, the coating pressure is 1Bar, and the pipeline is directly connected. The atomized particle data is laser diffraction.

Form 1

Model	DD-1/DD-1S
Nozzle Diameter (mm)	0.4/0.7/0.9/1.1/1.4/1.7
Air Consumption (l/min）	200-550
Output (ml/min)	0～320
Pattern Width (mm)	280@H=350mm
Air Cap Model	Five-axis machining forming a spray cap
Supply System	Type of pressure stable and paint filter
Mounting hole diameter (mm)	￠16mm

◎It will vary with the paint volume, spray width, paint viscosity and pressure

Form 2

Max paint pressure	0.7mpa
Atomization air pressure	0.1-0.4mpa
Air inlet pressure	Max0.5mpa
Pressure of switch spray gun	0.35-0.5mpa
Air consumption	200l/min
Paint output	10-550ml/min
Sprinkling width	200mm-280mm

Product application introduction

■ The nozzle diameter also refers to the effective diameter through which the coating particles can pass. The data in the table in the front column is the code. The parameter code needs to be filled in when ordering.

■ The parameter reading in the atomization pressure needs to be read in conjunction with a professional spraying air pressure gauge. The parameters in the lower column are Mpa megapascal units, 1 MP ≈0.98Bar.

■ The front model is the model code of the universal circulation spray gun, and the model in the back column is our company's order model code.

■ The minimum particle diameter is measured by laser diffraction. Depending on the viscosity, there will be substantial differences. Do not use it as a basis for production. It is only used to distinguish the effect that the spray gun can achieve under specific conditions.

Ordering Information

Gun size and connector size

WE'LL BE GLAD TO ANSWER YOUR QUESTIONS, PROVIDE SUPPORT OR OFFER QUOTES ON OUR PRODUCTS.

CONTACT NOW

PRODUCT DISPLAY

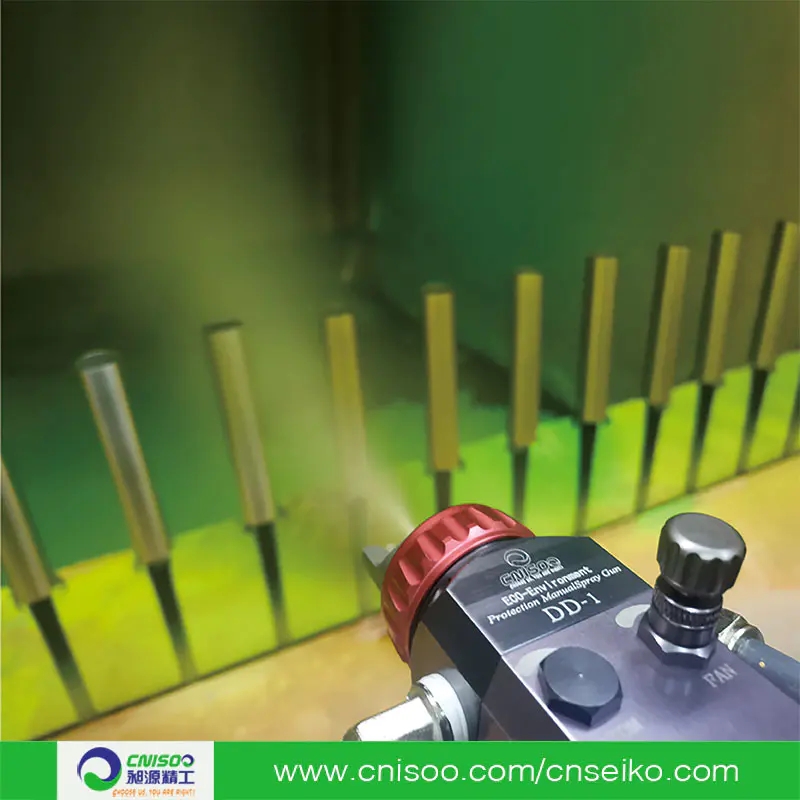

PRODUCT APPLICATIONS

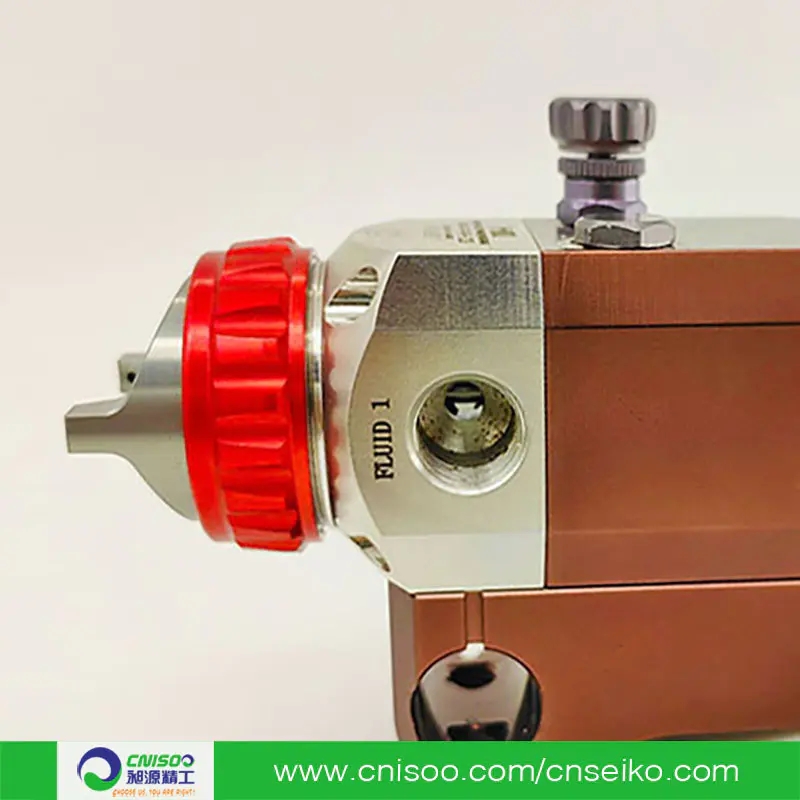

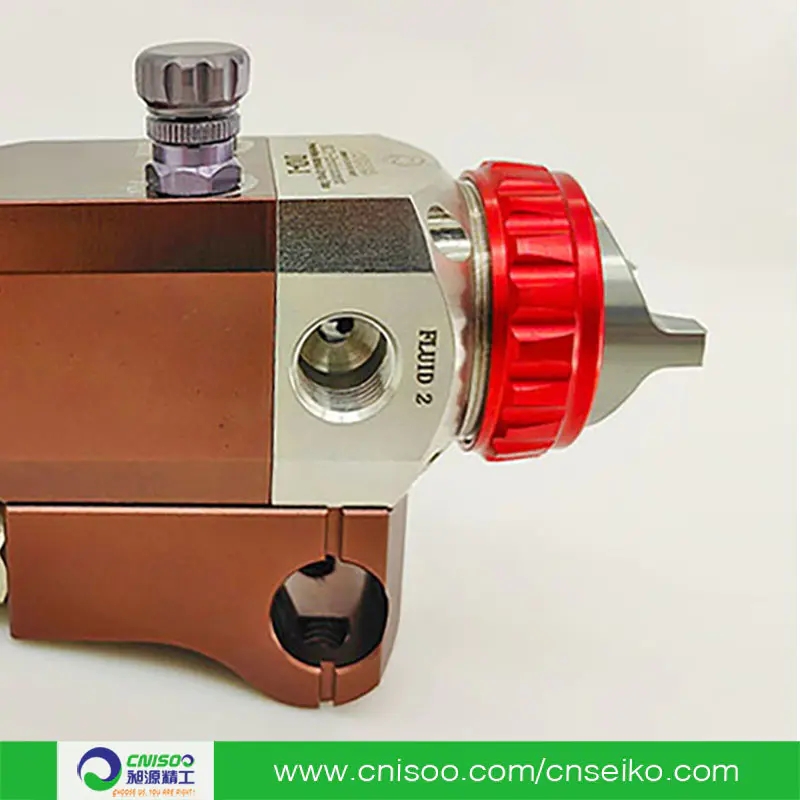

The gun body is made of ADC12 alloy. It is hot-formed by a 500T Nissan die-casting machine using a special mold. The air inlet interface adopts the design method of in-line hose, which reduces the customer's installation time and maintenance time. If equipped with our company's professional paint connector, the model is ACC. It only takes 5 seconds to replace a spray gun.

The spray gun nozzle is made of 304 stainless steel, which is resistant to corrosion and abrasion. At the same time, it is equipped with a compound needle with a patent number of CN107081232A to adapt to special performance coatings. Such as: ceramic coatings with high abrasion performance, PTFE coatings, water-based coatings with high solid content, special coatings containing sand and so on.

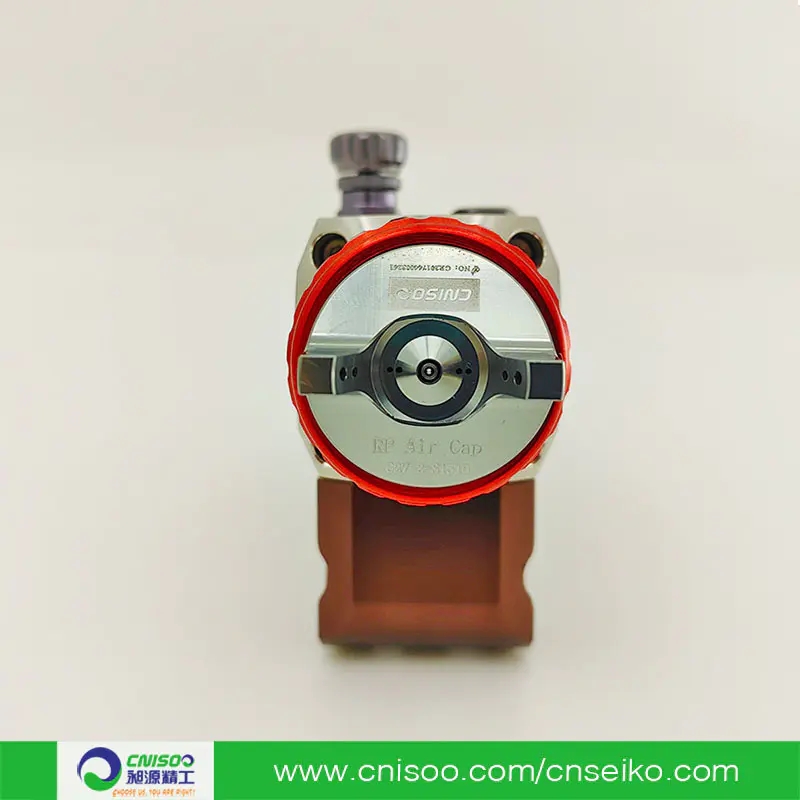

The air cap is made of environmentally friendly copper alloy after five-axis CNC machining. Each atomizing cap has undergone professional testing and test spraying to prevent poor atomization during spraying, thereby reducing the defective rate caused by spray gun spraying in production.

According to different installation methods, the spray gun body is designed with a Φ16mm mounting hole to fit the mounting bracket for general scenes, or it can be used with our company's professional mounting bracket.

DD-5 is a paint efficient series spray gun, using the most advanced atomization technology -PP atomization technology, combining the advantages of traditional and HVLP spray gun, its atomizing cap air pressure of about 1.2-1.3 bar; The paint transfer efficiency is more than 65%, but the air consumption is lower than the traditional spray gun (295 liters per minute, intake pressure 2.5 bar), the operation is very close to the traditional spray, the installation hole position is 16 mm, directly replaced on the original gun, without any operation, the own paint circuit, to prevent the accumulation of paint, to avoid cleaning unclean situation.
