Paint three-way valve

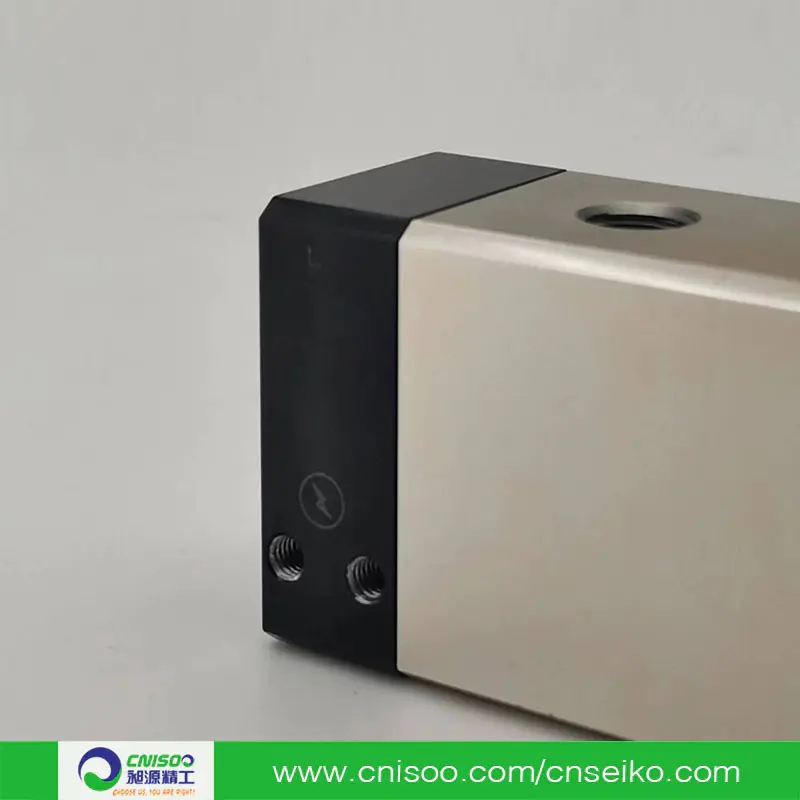

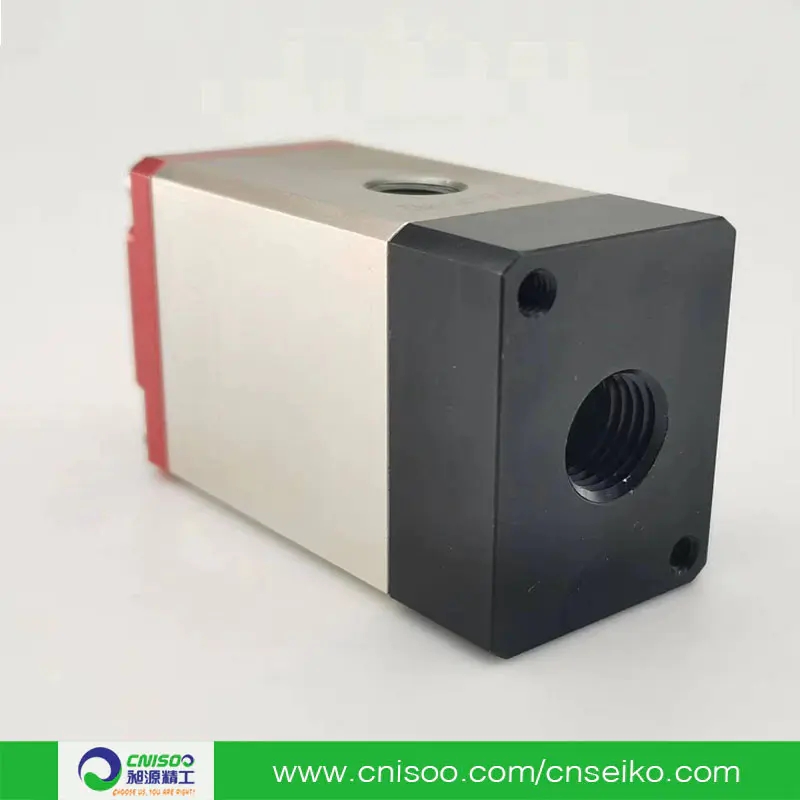

Paint three-way valve
- TPV01/TPV02
- 1650.00
- 10Pcs
- Cash on delivery
- Lssued in 2 hours
PRODUCT FEATURES
● Separated from active cylinders with diaphragm construction
● Small size, fine workmanship
● lmported material, acid and alkali resistant
● Stable and trouble-free, ideal for coatings such as waterborne coatings and metallic paints
● lntelligent air quick control, easy to switch paint and reflow

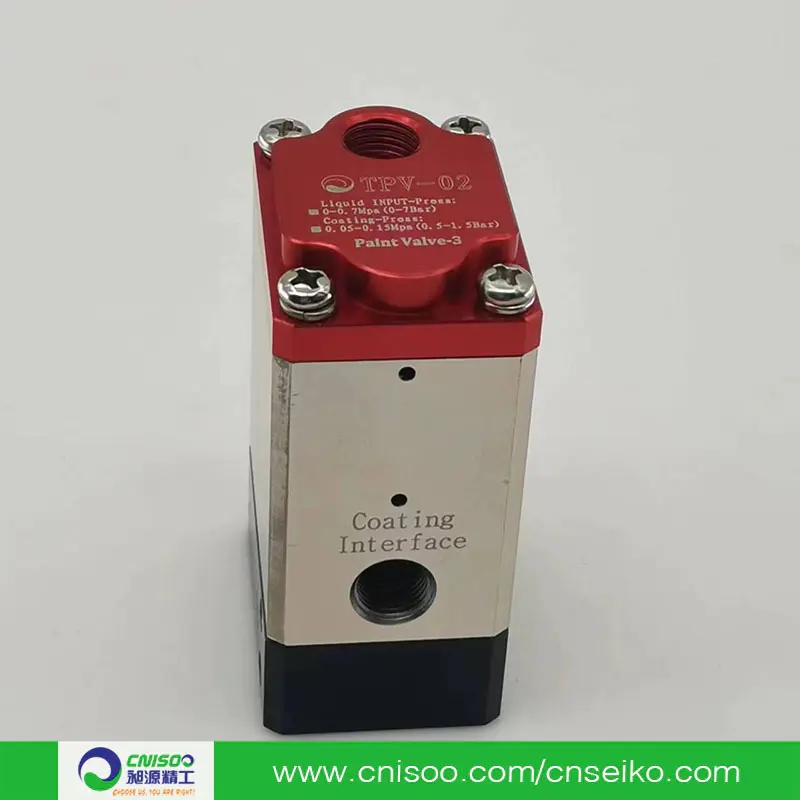

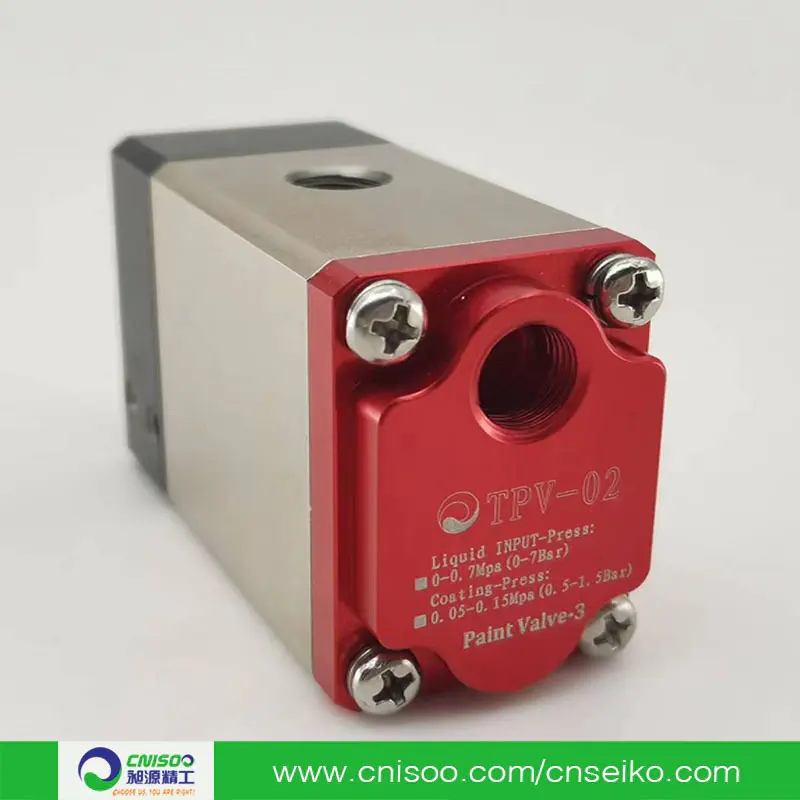

TPV02 needle valve switch structure, dedicated to easy to plug the coating industry
Structure description
Paint inlet | RCG-1/8" |
Paint outlet | RCG-1/4" |
Control air inlet | RCG-1/8" |

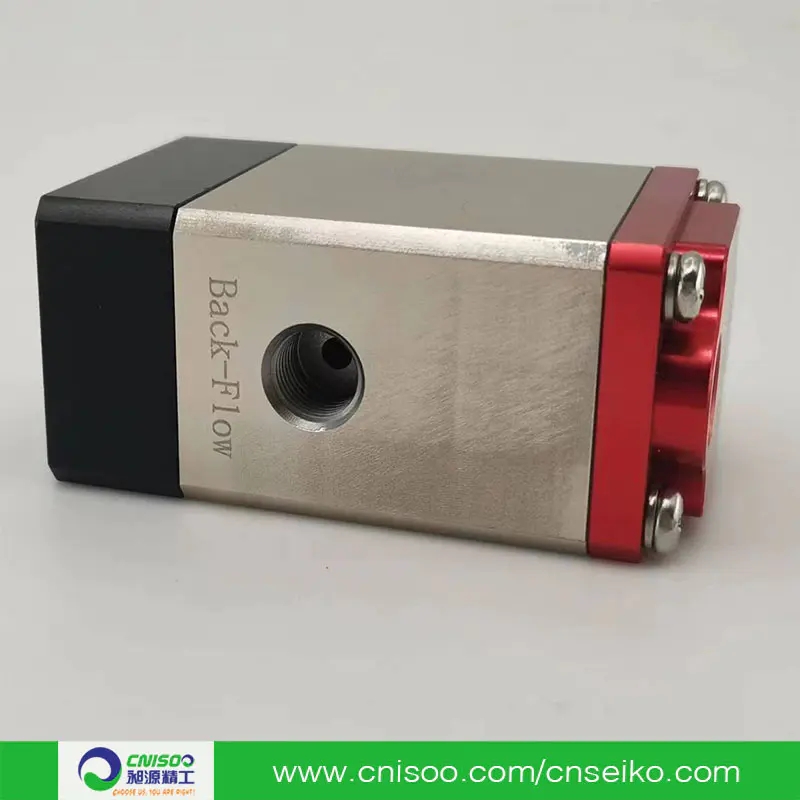

Paint retum connection | RCG-1/8" |
Mounting holes | 2-M5×5mm |
Product parameter table
Control the air inlet | RC1/8"PT |
Withstand pressure | 7bar(100psi) |
Control air pressure | 2.0-3.5bar(35-50psi) |
Controlled flow | 0-3LPM(0-3000cc) |
Wetted material | 316LStainless steel, aluminum alloy, Teflon |
Operating temperature range | 40-212F(4.4-100℃) |
