Constant Current Module CCM
Constant Current Module CCM
- CCM-R4
- 1650.00
- 10Pcs
- Cash on delivery
- Lssued in 2 hours
PRODUCT FEATURES
Flow control valve with automatic spraying equipment, remote precision control to save paint durable, widely used industries, wood products, plastics, hardware, automotive, leather, ceramics.
Low flow precision pneumatic regulator with proportional control capability, designed specifically for automatic spraying applications, has extremely sensitive pressure adjustment and flow control functions
Save paint precision regulation, durable paint proportion control valve through the liquid parts of stainless steel, save paint and precision regulation pneumatic pressure regulation, remote control operation quick response, proportional regulation more precise, sensitive, with product spraying operation, improve spraying efficiency, improve surface quality
Ratio 4:1, liquid parts stainless steel, fluid inlet 1/4, fluid outlet 1/4, minimum input pressure 1bar, maximum input pressure 15bar, maximum output pressure 4bar, remote control 4mm pipeline
Model | CCM-R4 |
Type | Abuffer valve function |
Main Material | Aluminum/Stainless Steel |
Adjustment Speed | 1:1/1:4 |
Output | 35~100ml/min |
Air Pressure Range | 0~0.6MPa |
Max.Air Pressure | 0.75MPa |
Air Connectors | M5 (With cleaning interface) |
Paint lnlet | RCG1/4(PT1/4) |
paint Outlet | RCG1/4(PT1/4) |
Weight/g | 750 |
lnstallation size (front) | 2-M5×0.8,Thread Depth)13mm, l=20mm |
lnstallation (back) | 2-M5×0.8,Thread Depth)8mm, l=22mm |
Product details

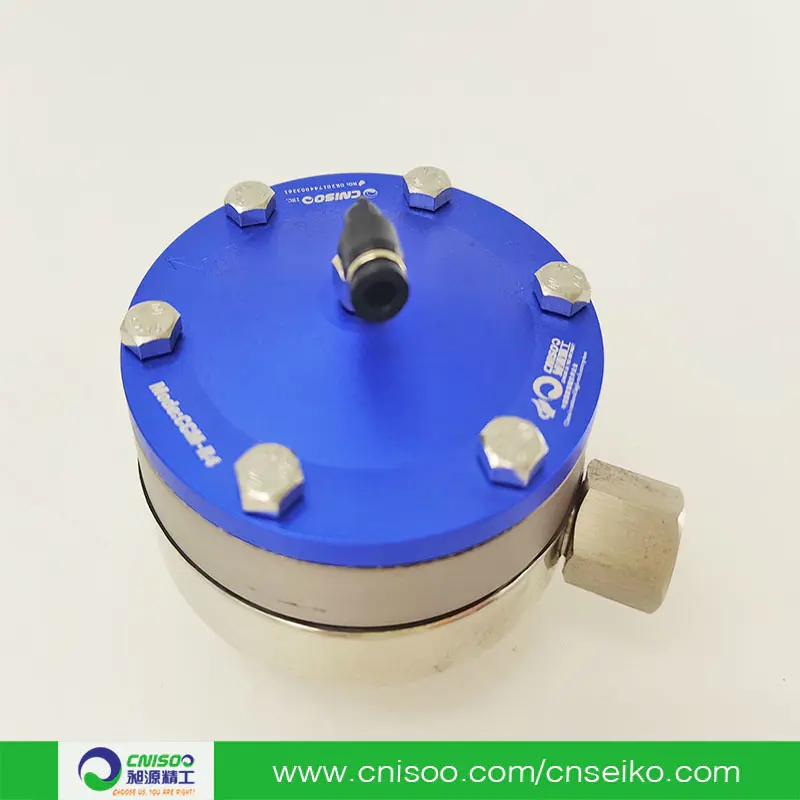

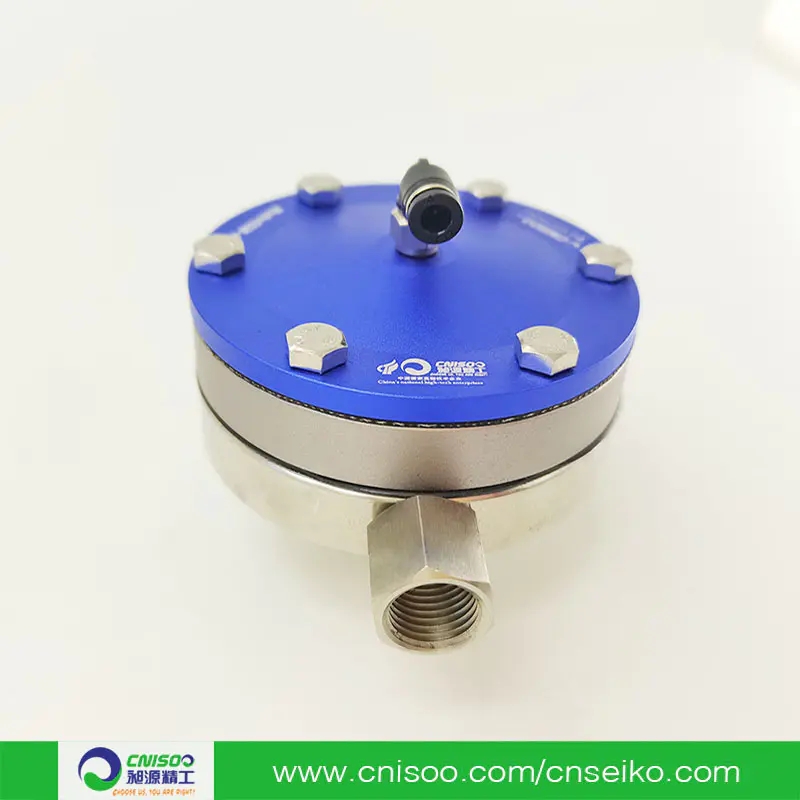

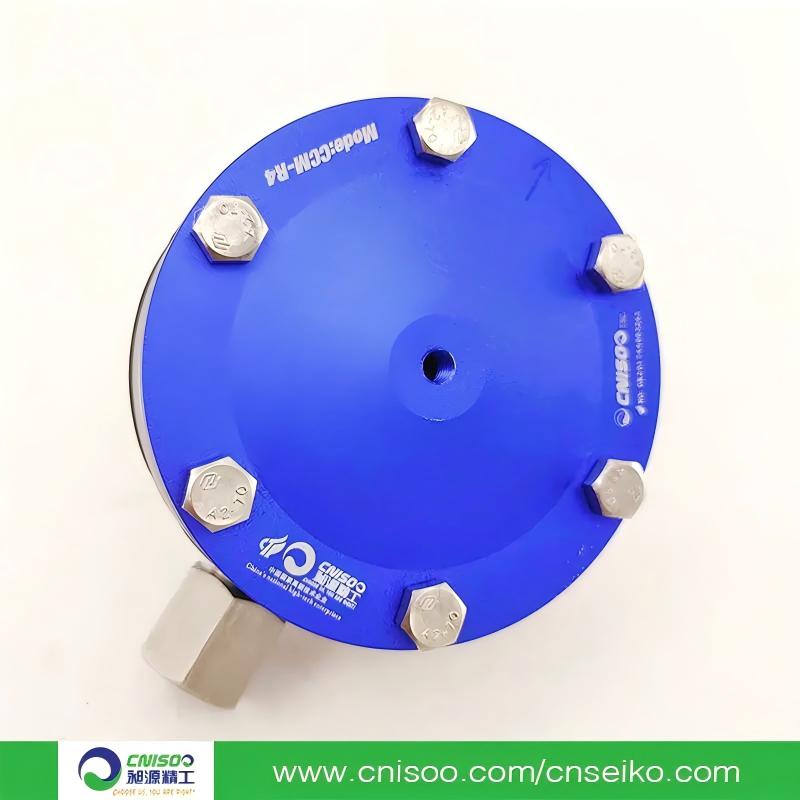

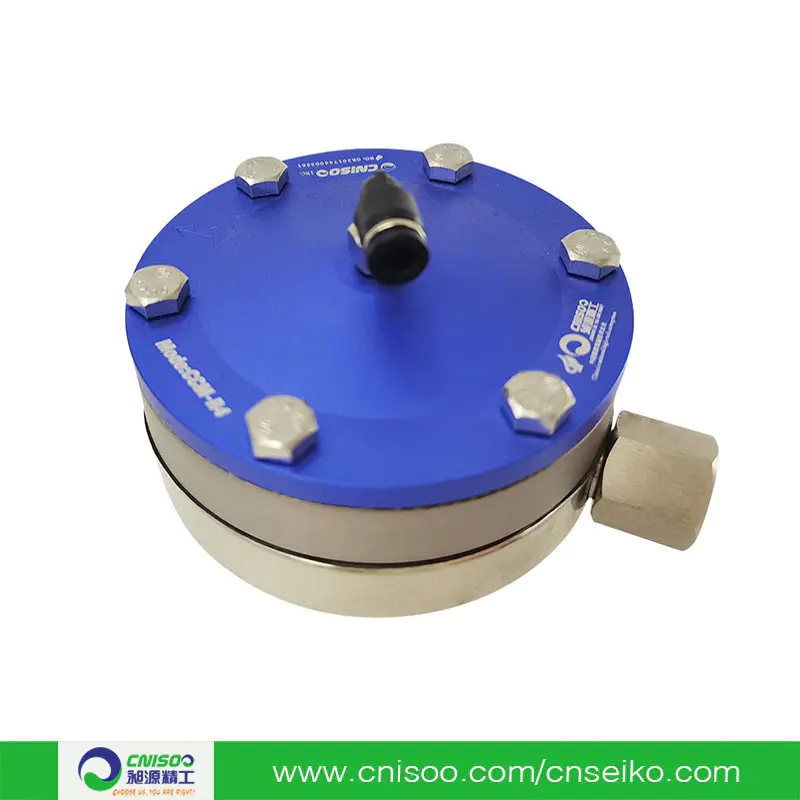

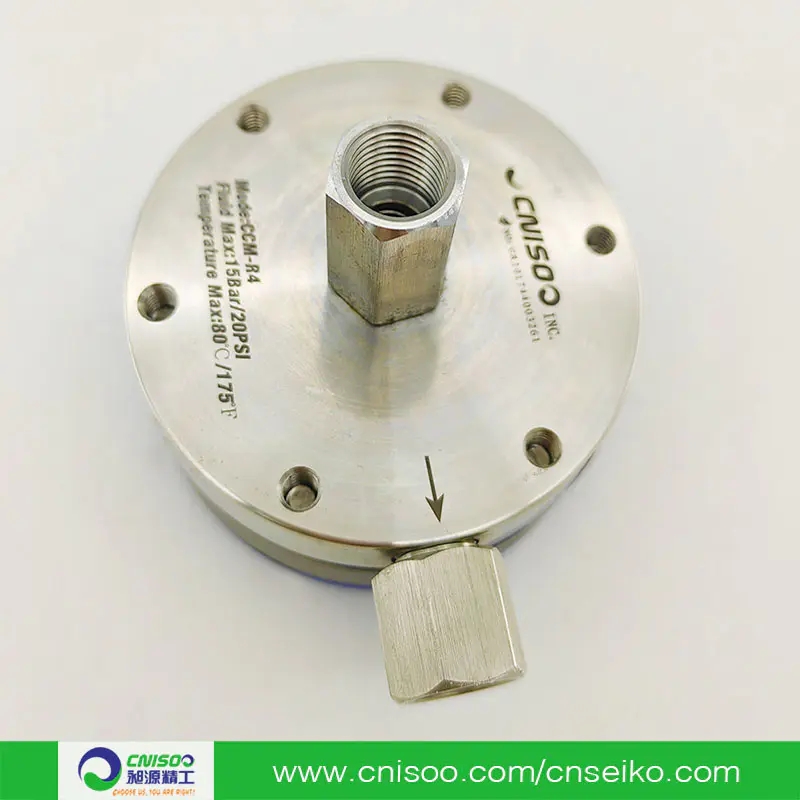

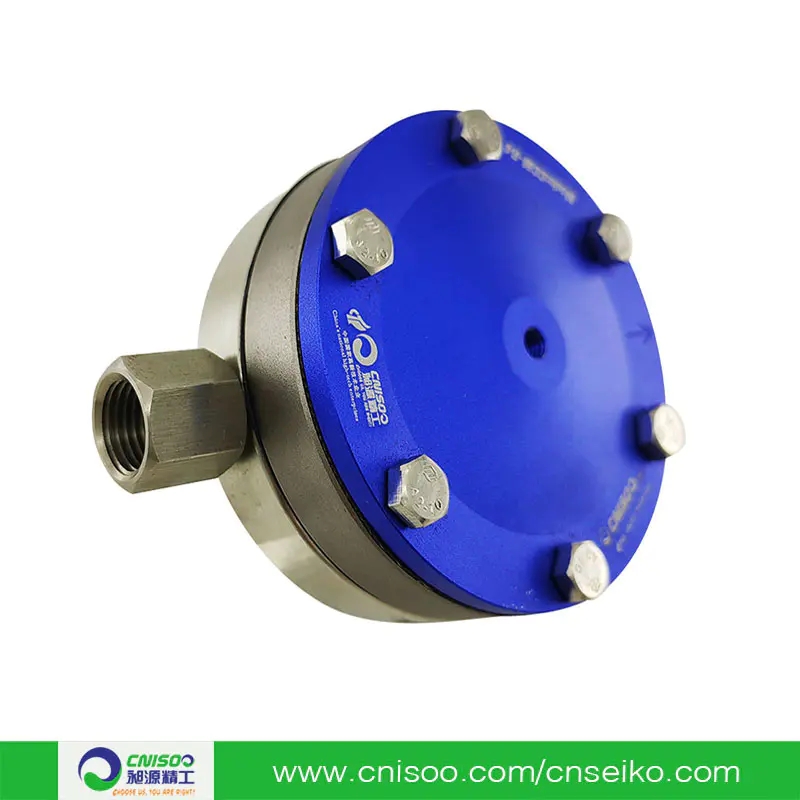

Pneumatic paint pressure reducing valve, remote operation to adjust the paint pressure and discharge, the use of robot or reciprocating machinery for painting environment, installed in the vicinity of the automatic spray gun, that is, to eliminate the discharge caused by the difference between high and low fluctuations. There is a certain difference between the pressure area of the air and the coating designed to form the diaphragm, which is most suitable for micro-adjustment of the amount of spit.
