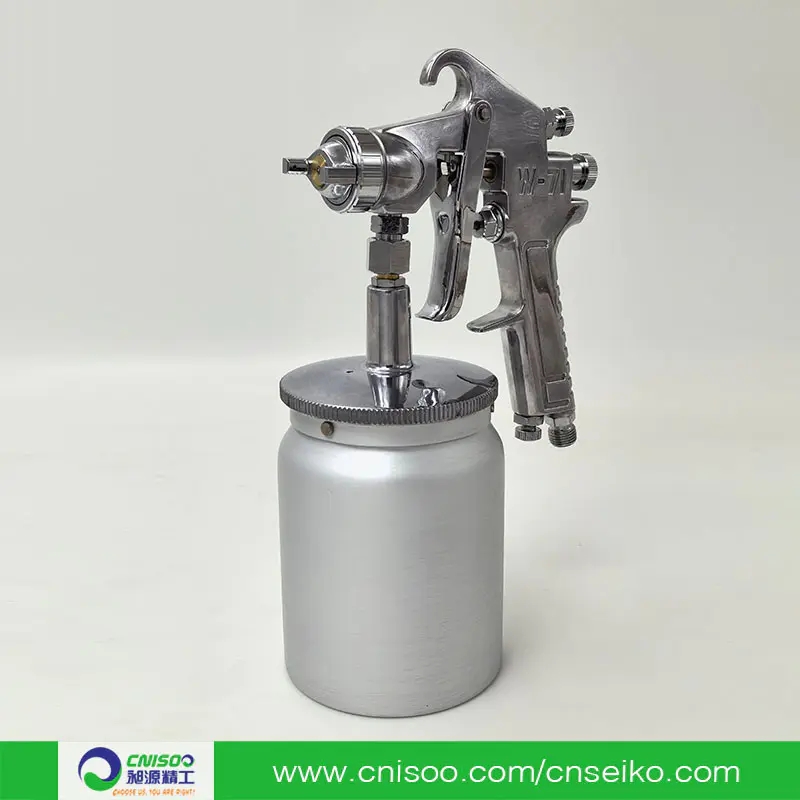

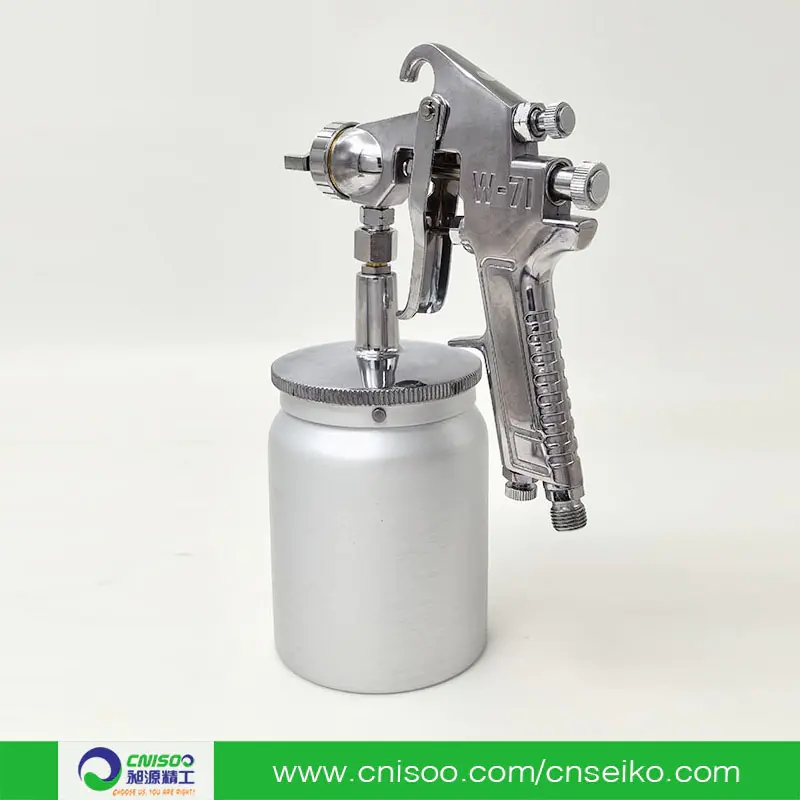

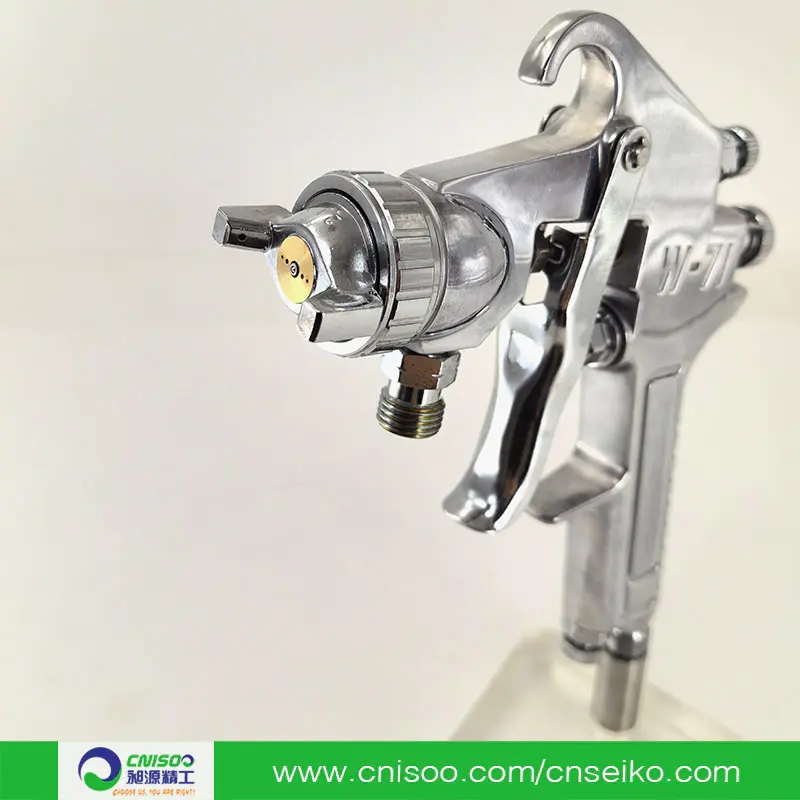

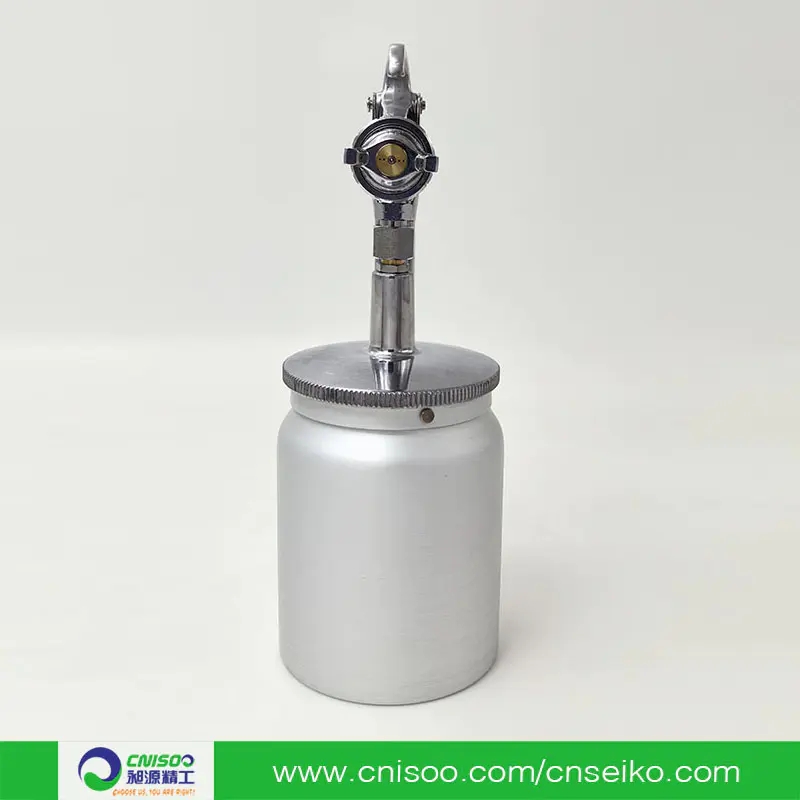

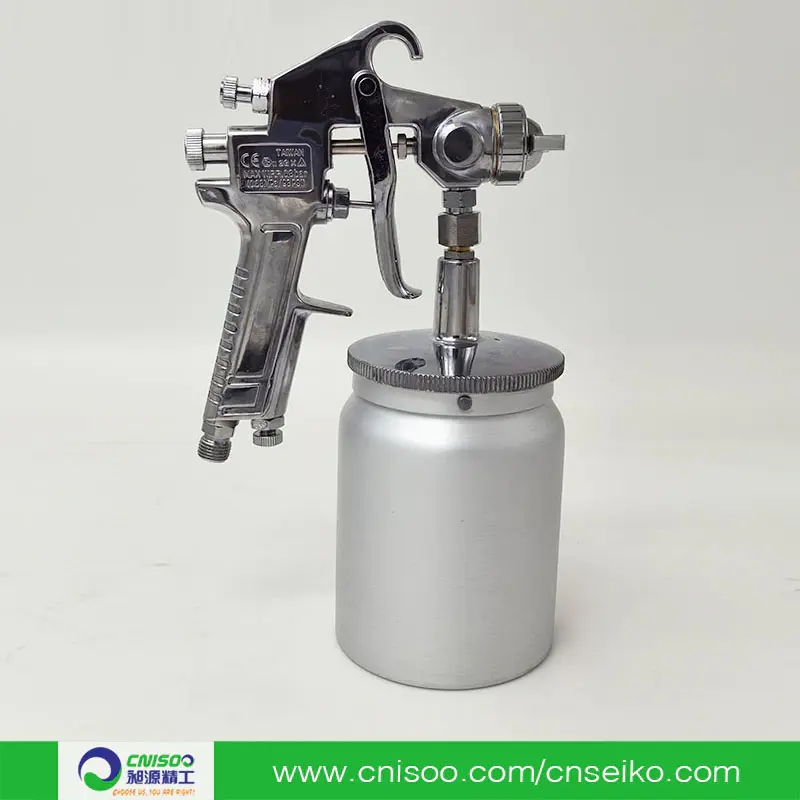

Manual Paint-Saving Spray Gun for Hardware Product Spraying

USD Unit Price:: 41

MOQ:: 1Pcs

Payment::: Cash on delivery

Delivery Time:: 1-7 days

Inquire Online
Download

Cancel

PRODUCT FEATURES

1. The nozzle and needle are made of 316 stainless steel, so they are very hard and durable, as well as long using life.

2. The case of small fluid and color changing frequently, it is more convenient for using gravity feed type (G type) cup.

3. In the condition of small fluid and middle fluid, more frequently color changing, it is more convenient for using suction feed type ( S type) cup. If used for a lot of same color production line spray, pressure feed type( P type) is more convenient.

PRODUCT PARAMETER

1. The nozzle, needle and liquid passage of it are made of 316 stainless steel which has a good corrosion resistance. This air spray gun can spray kinds of usual paints and liquids.

2. As manufactured by machine after birthed from the mold, it is of good quality.

Model	Type of feed	Fluid nozzle orifice	Spray distance	Atomizing air pressure	Air consmption	Fluid output	Pattern width	Required air compressor	Standard paints cup
Model	Type of feed	mm	mm	Mpa	1 /min	ml/min	mm	kw	Standard paints cup
W-71-0	Pressure	0.8	200	0.34	240	200	190	1.5	A variety of coatings feed tank, diaphragm pump
W-71-02	Pressure	1.0		0.34	230	300	265	1.5	A variety of coatings feed tank, diaphragm pump
W-71-1S	Suction	1.0		0.29	75	95	100	0.4	Container
W-71-2S		1.3			85	135	135	0.4	PC-1S(100ml)
W-71-3S		1.5			165	180	170	0.75	PC-2(600ml)
W-71-21S		1.3			195	140	155		PC-3(400ml)
W-71-31S		1.5			230	170	170	1.5	PCL-10B-2 (1000ml)
W-71-4S		1.8			230	195	195	1.5	PCL-7B-2 (700ml)
W-71-1G	Gravity	1.0			75	110	120	0.4	Cup
W-71-2G		1.3			85	155	155	0.4	PC-4S(400ml)
W-71-3G		1.5			165	210	185	0.75	PC-3(400ml)
w-71-21G		1.3			195	160	165	1.5	POG-6P-2(600ml)
W-71-31G		1.5			230	190	185		PC-51(220ml)(stainless steel)
W-71-4G		1.8			230	220	220		PC-61(130ml)(stainless steel)
